Key Concepts
Get familiar with the core terminologies in Anduin's Investor Data Management
Introduction
Welcome to the IDM Public API documentation webpage, where we guide you through harnessing the power of IDM Public APIs to seamlessly integrate data between your Client's CRM system and Anduin's Investor Data Management (IDM) application.
This page serves as a guide, leading you through the primary components you will engage with using REST API.
Leveraging our public APIs enables the automation of crucial tasks:
- Monitor investor data, including investment entities, contacts, documents and profile
- Create Fund Subscription orders using IDM data from your CRM system or sync IDM updates to your CRM (See Supported workflow)
Data models

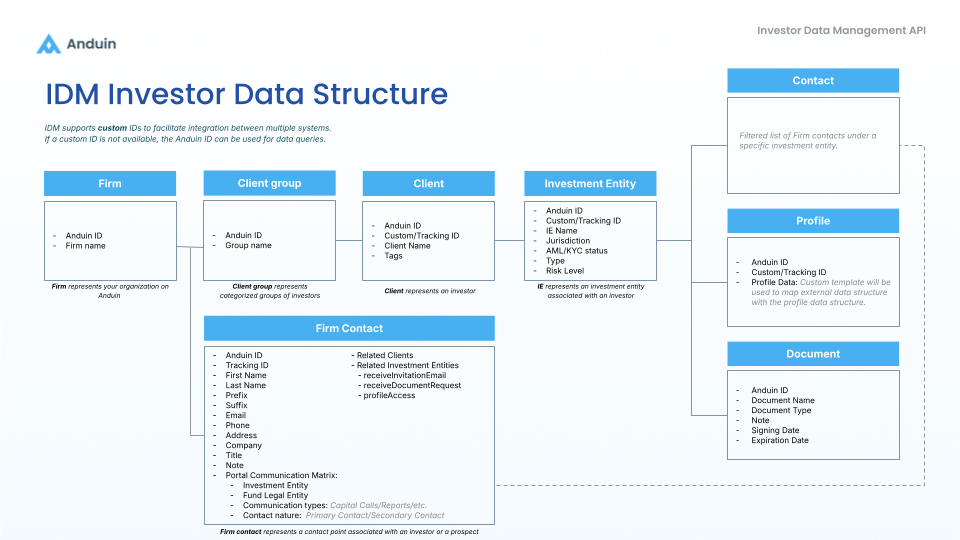

The following graph displays the data models of IDM:

Firm
Represents your organization on Anduin IDM.
Field Name | Field Description | Data Type |
---|---|---|
id | The system-generated ID provided at creation | String |
name | The name of the Firm | String |
Client group
Represents categorized groups of investors.
Field Name | Field Description | Data Type |
---|---|---|
id | The system-generated ID provided at creation | String |
name | The name of the Client Group | String |
Client
Represents an investor in IDM. A client can have multiple Investment Entities (IEs).
Field Name | Field Description | Data Type |
---|---|---|
id | The system-generated ID provided at the creation | String |
name | The name of the Client | String |
trackingId | The custom unique ID set by the user | String |
tags | The user-generated tags of the Client | String |
clientGroupId | The ID of the client group that the Client belongs to in IDM | String |
note | The user-generated note about the Client | String |
Investment Entity (IE)
Represent an investment vehicle of an Investor (Client). Each IE will contain a profile, a list of AML/KYC documents, and a list of contacts.
Field Name | Field Description | Data Type |
---|---|---|
id | The system-generated ID provided at creation | String |
trackingId | The custom unique ID set by the user | String |
name | The name of the Investment Entity | String |
jurisdiction | The jurisdiction of the Investment Entity | String |
amlKycStatus | AML/KYC compliance status | String |
type | The type of the Investment Entity | String |
riskLevel | The risk level of the Investment Entity | String |
note | The user-generated note about the IE | String |
Profile
Stores profile data for an investment entity. Each IE has one profile. Each Firm has a profile structure applied across all its investment entities, but IDM supports custom templates so you can map the data structure with your own system.
Field Name | Field Description | Data Type |
---|---|---|
investmentEntityId | The system-generated ID provided at creation | String |
investmentEntityTrackingId | The custom unique ID of the IE that owns the profile | String |
data | The data fields captured from the profile template. | Object |
Document
Stores documents related to an investment entity, such as legal or compliance files.
Field Name | Field Description | Data Type |
---|---|---|
id | The system-generated ID provided at creation | String |
name | The name of the Document | String |
documentType | The type of the Document | String |
note | Notes about the Document | String |
signedAt | Date the Document was signed | Date |
expiredAt | Expiration date of the Document | Date |
Contact
A contact of the Firm, representing a contact point associated with an investor or a prospect.
Field Name | Field Description | Data Type |
---|---|---|
id | The system-generated ID provided at creation | String |
trackingId | The unique ID set by the user | String |
firstName | First name of the contact | String |
lastName | Last name of the contact | String |
prefix | Prefix of the contact (e.g., Mr., Ms., Dr.) | String |
suffix | Suffix of the contact (e.g., Jr., Sr.) | String |
Email of the contact | String | |
phone | Phone number of the contact | String |
country | A part of the contact's street address: Country | String |
numberAndStreet | A part of the contact's street address: Number and Street | String |
city | A part of the contact's street address: City | String |
state | A part of the contact's street address: State | String |
zipCode | A part of the contact's street address: Zip Code | String |
company | Company of the contact | String |
title | Title of the contact | String |
note | Notes about the contact | String |
assignedClients | Clients assigned to this contact. This includes the Contact's Client-Level Permissions. | List[Object] |
assignedInvestmentEntities | Investment Entities related to this contact. This includes the Contact's IE-Level Permission | List[Object] |

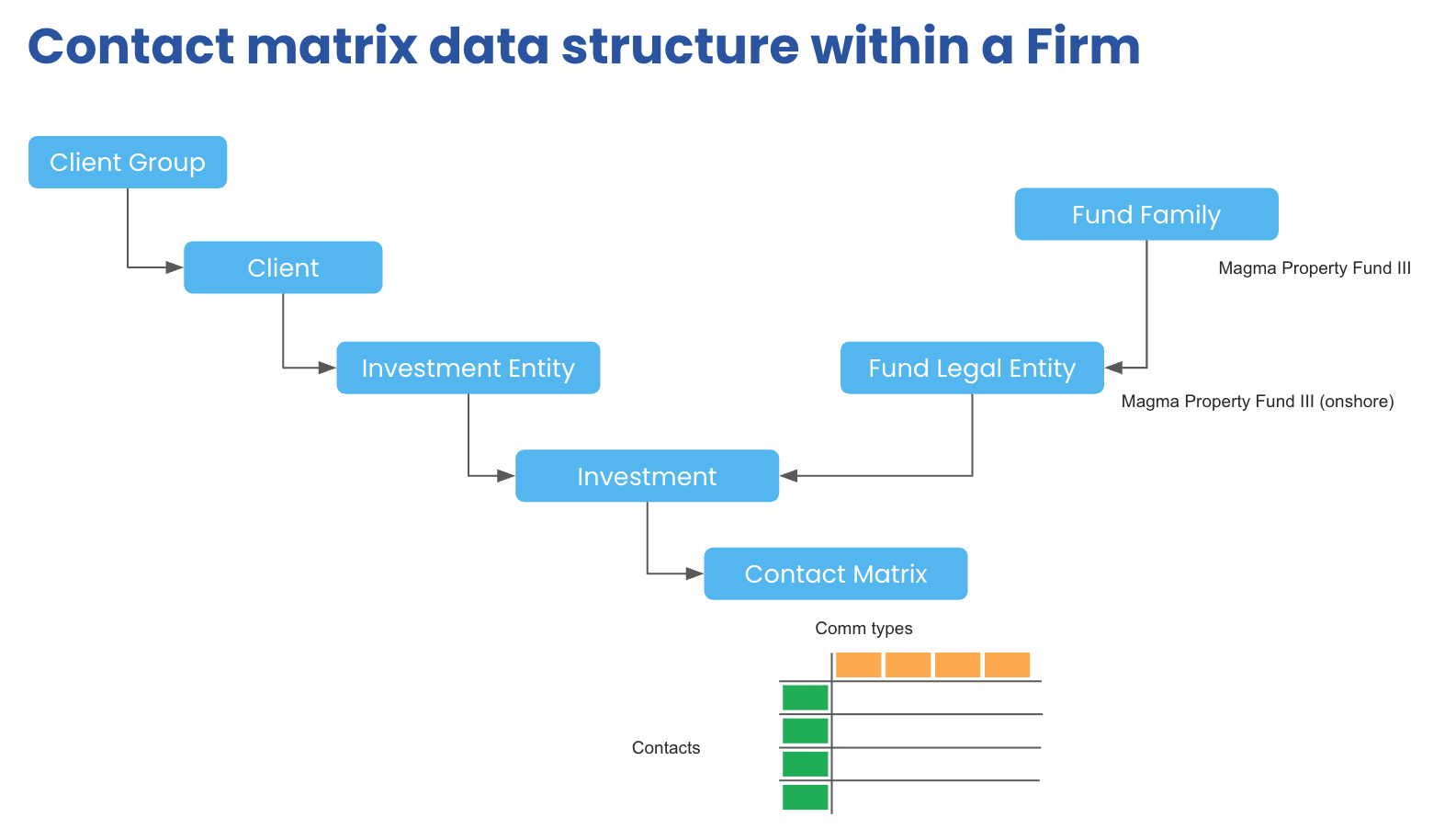

Contact's Client-Level Permissions
Defines the permissions a contact has when associated with specific clients, including whether they receive invitations, document requests, and access to investor profiles.
Field Name | Field Description | Data Type |
---|---|---|
id | The system-generated ID of the client that is assigned to the contact | String |
receiveInvitationEmail | Indicates whether the contact is pre-filled as a recipient for FundSub invitation emails. | String |
receiveDocumentRequest | Indicates if the contact is pre-filled as a recipient for document request notifications | String |
profileAccess | Indicates if the client has access to the Client's IE profiles | String |
Contact's IE-Level Permission
Defines the permissions a contact has when associated with specific IEs, including whether they receive invitations, document requests, and access to investor profiles.
Field Name | Field Description | Data Type |
---|---|---|
id | The system-generated ID of the IE that is assigned to the contact | String |
receiveInvitationEmail | Indicates whether the contact is pre-filled as a recipient for FundSub invitation emails. | String |
receiveDocumentRequest | Indicates if the contact is pre-filled as a recipient for document request notifications | String |
profileAccess | Indicates if the client has access to the IE profile | String |
Portal Communication Matrix (coming soon)
